Pick the wrong gas system length for your barrel and the rifle either short-strokes (won't cycle) or over-pressures (battering the bolt). This guide matches gas length to barrel length so you buy an upper and handguard that actually run together — no assembly walk-through, just what fits.
The Four Gas System Lengths
The "gas system length" is the distance from the chamber to the gas port — it sets how long gas pushes the bolt (dwell time). Longer system = softer, more reliable impulse, as long as the barrel is long enough to support it.
| Gas System | Port distance | Typical barrel length |
|---|---|---|
| Pistol | ~4" | 7"–10.5" |
| Carbine | ~7" | 10.5"–16" |
| Mid-length | ~9" | 14"–20" |
| Rifle | ~12" | 18"+ |
Which Gas Length Goes With Which Barrel
- 16" barrel: carbine works and is the most common, but mid-length is the upgrade — softer recoil and longer port life on the same 16" barrel.
- 14.5" barrel: mid-length if you want the smoothest impulse; carbine if you're running a pinned-and-welded muzzle device.
- 10.5"–11.5" barrel: carbine. Pistol-length on a barrel this long over-dwells.
- 7"–10" barrel (pistol/SBR): pistol-length.
- 18"–20" barrel: rifle-length for the softest shooting AR you can build.
Rule of thumb: run the longest gas system the barrel length supports. It's gentler on the rifle and the shooter.
Match Your Handguard to the Gas Length
The handguard has to clear the gas block. As a rough pairing:
| Gas length | Handguard length |
|---|---|
| Carbine | 7"–10" |
| Mid-length | 12"–13.5" |
| Rifle | 15"+ |
A free-float handguard that extends past the gas block (very common on 15" rails over mid-length systems) gives you more rail for hands and accessories without touching the barrel.
What to Build With
If you'd rather skip matching parts yourself, a complete upper already has the gas system, barrel, and handguard paired correctly:

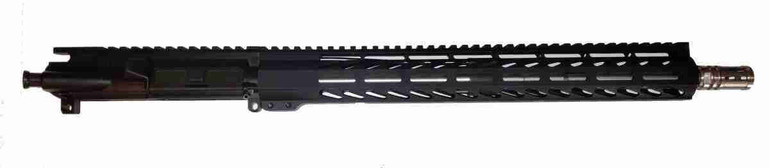

- Complete AR-15 16" M4 Carbine Upper — barrel, BCG, charging handle, and a 15" M-LOK rail, ready to drop on a lower.
- Building your own? Pair the gas length above with the right rail — the Midwest Industries 12.625" M-LOK suits mid-length 16" builds, or the Super Light Slim Free-Float M-LOK for lighter setups.
- Don't forget the back end — an AR-15 mil-spec buffer tube kit completes the lower.
Browse all AR-15 parts and accessories to finish the build.
